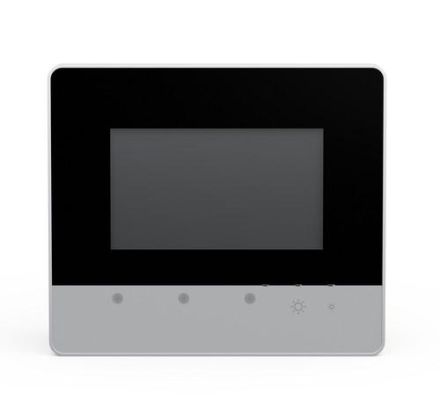

Wago 762-4201/8000-001 TP600 4.3 480x272 Touch Panel

In stock
SKU: 766259
€1,146.79
Into a basketIn the basketGo

Overview

762-4201/8000-001 TP600 4.3 480x272 Touch Panel Manufacturer article number: 762-4201/8000-001, Manufacturer article name: TP600 4.3 480x272

Property Value
Display design: TFT
Mounting type, boom mounting: no
Mounting type, table base: no
Screen diagonal: 4.3 inches
Front installation possible: yes
Wireless standard Bluetooth: no
Wireless standard WLAN 802.11: no
Suitable for safety functions: no
IO-Link Master: no
Rack mounting possible: yes
DIN rail mounting possible: no
Supports protocol for ASI: no
Supports protocol for AS-Interface Safety at Work: no
Supports protocol for CAN: no
Supports protocol for Data-Highway: no
Supports protocol for DeviceNet: no
Supports protocol for DeviceNet Safety: no
Supports protocol for EtherNet/IP: yes
Supports protocol for Foundation Fieldbus: no
Supports protocol for INTERBUS: no
Supports protocol for INTERBUS-Safety: no
Supports protocol for KNX: no
Supports protocol for MODBUS: yes
Supports protocol for PROFIBUS: no
Supports protocol for PROFINET CBA: no
Supports protocol for PROFINET IO: no
Supports protocol for PROFIsafe: no
Supports protocol for SafetyBUS p: no
Supports protocol for SERCOS: no
Supports protocol for other bus systems: yes
Supports protocol for SUCONET: no
Supply voltage for DC: 24 V
Pre-installed operating system: LINUX
Wall/direct mounting possible: yes
Number of pixels, horizontal: 480
Number of pixels, vertical: 272
With touchscreen: yes
Integrated keyboard: no
Integrated mouse cursor control: no
Max. Main memory: 4096 MB
With hard drive: no
With CD-ROM drive: no
With DVD drive: no
With CD-RW drive: no
With DVD RW drive: no
With floppy disk drive: no
With other storage media: yes
Customer-specific configuration possible: no
Number of free slots, PC card (PCMCIA): 1
Supports protocol for LON: no
Number of HW interfaces Industrial Ethernet: 2
Number of HW interfaces USB: 2
Protection class (IP), front: IP65
Height of the front: 135 mm
Width of the Front: 155 mm
Installation depth: 58 mm
Operating temperature: 0 to 55 °C
Type of supply voltage: DC
Radio standard GPRS: no
Radio standard GSM: no
Radio standard UMTS: no
Protection class (NEMA): 4

Characteristics

Type of voltage of the supply voltageDC
Supports protocol for KNXNo
HABTP600 4.3 480x272
ManufacturerWago
HAN762-4201/8000-001
GTIN4055143839440
Operating temperatur0 to 55 °C
Installation depth58 mm
Suitable for security functionsNo
Protection class (IP), frontIP65
Protection class (NEMA)4
Mounting rail possibleNo
Supports protocol for AS-Interface Safety at WorkNo
Supports protocol for ASINo
Supports protocol for CANNo
Supports data highway protocolNo
Supports protocol for DeviceNetNo
Supports protocol for DeviceNet SafetyNo
Supports protocol for EtherNet/IPYes
Supports protocol for Foundation FieldbusNo
Supports protocol for INTERBUSNo
Supports protocol for INTERBUS-SafetyNo
Supports protocol for LONNo
Supports protocol for ModbusYes
Supports protocol for PROFIBUSNo
Supports protocol for PROFINET CBANo
Supports protocol for PROFINET IONo
Supports protocol for PROFIsafeNo
Supports protocol for SERCOSNo
Supports protocol for SUCONETNo
Supports protocol for SafetyBUS pNo
Supports protocol for other bus systemsYes
