Wago 769-111/022-000 R55mm, 11p, 500V terminal block

In stock

SKU: 966153

Price on request

€9.23

€0

Overview

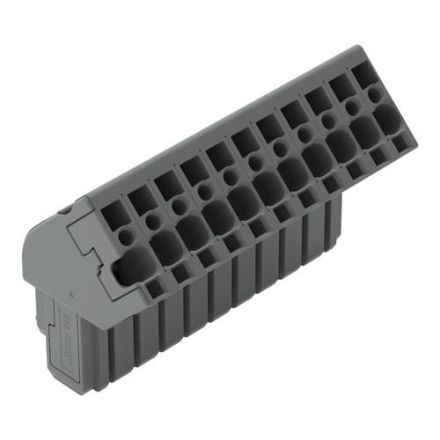

1-conductor female connector, angled, CAGE CLAMP®, 4 mm², pitch 5 mm, 11-pin, coding nose, 4.00 mm², gray

Property	Value
Number of poles:	11
Rated voltage:	500 V
Material of the insulating body:	Thermoplastic
Rated current In:	32 A
Color:	gray
Operating temperature:	105 °C
QS fine-stranded:	0.08 to 4 mm²
QS single-stranded:	0.08 to 4 mm²
QS multi-stranded:	0.08 to 4 mm²
QS wire end ferrule:	0.25 to 2.5 mm²
Mounting type:	other
Design of electrical connection 1:	Spring-loaded connection
Design of electrical connection 2:	Spring-loaded connection
Number of terminal points per pole:	1
Flammability class of the insulating material according to UL94:	V0
End plate required:	no
Explosion-tested version Ex e:	no
Transparent:	no
Halogen-free:	yes
Width:	55 mm
Height:	26.5 mm
Depth:	37.1 mm
