Wago 769-228/281-410 gr terminal block diode

Wago 769-228/281-410 gr terminal block diode

In stock

SKU: 968399

Price on request

€6.35

€0

Into a basketIn the basketGo

Overview

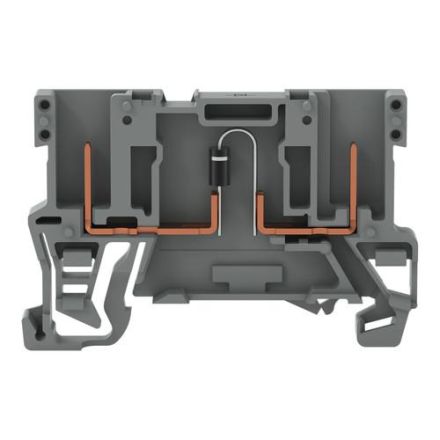

2-pin component base terminal, with diode 1N4007, anode left, for mounting rail 35 x 15 and 35 x 7.5, 4 mm², gray

Property	Value
Rated current In:	0.5 A
Operating temperature:	105 °C
Rated voltage:	250 V
Design of electrical connection 1:	Plug connection
Design of electrical connection 2:	Plug connection
Number of levels:	1
Number of terminal points per level:	2
Levels bridged internally:	no
Mounting type:	DIN rail TH35
Flammability class of the insulating material according to UL94:	V0
End plate required:	yes
Color:	gray
Component type:	Diode
Explosion-tested version Ex e:	no
Material of the insulating body:	Thermoplastic
Width:	5 mm
Height:	52.5 mm
Depth:	28.5 mm

Characteristics

Minimal order100 pcs

Manufacturer

HAN769-228/281-410

GTIN4045454619428

Rated voltage250V

Rated current In0.5A

Operating temperatur105°C

Width5 mm

Color

Height52.5 mm

Mounting typeDIN rail TH35

Depth28.5 mm
