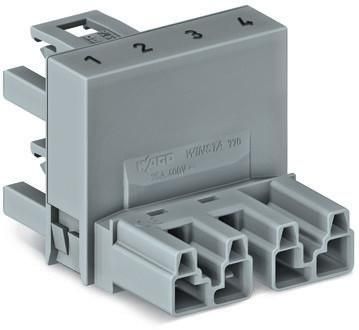

Wago 770-1683 h-DISTRIBUTOR 4-PIN CODE B PINK 2VK

In stock

SKU: 982765

Price on request

€13.05

€0

Overview

h-DISTRIBUTOR 4-PIN CODE. B PINK 2VK

Property	Value
Contact material:	CuSn
Inputs:	4
Outputs:	8
Fire load:	0.15111 kWh
Protection class (IP):	IP20
Length:	51 mm
Height:	36.7 mm
Width:	40 mm
Rated impulse voltage:	6 kV
Contact resistance:	1 mOhm
Rated current:	25 A
Number of poles:	4
Color of coding/contact insert:	other
Type of distributor:	Distribution block
Rated voltage:	400 V
Material of the housing:	Polyamide (PA)
Halogen-free:	yes
Surface treatment of contacts:	tinned
Mechanical coding:	yes
Color of the separate adapter piece:	without adapter piece
Degree of pollution:	3
Type of integrated circuit:	without
Type of locking:	integrated in the connector
Mounting option:	no
Rated current for the luminaire:	25 A
Max. continuous temperature resistance of contact part:	85 °C
Max. continuous temperature resistance of strain relief:	105 °C
