Wago 770-684 H-distributor PA series 770 3in 3p 6out

In stock

SKU: 975933

Price on request

€9.12

€0

Overview

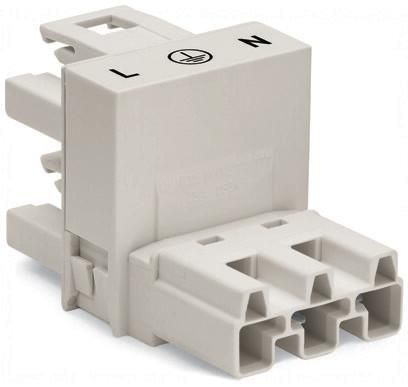

770-684 h-DISTRIBUTOR 3-P. WHITE

Property	Value
Contact material:	CuSn
Inputs:	3
Outputs:	6
Fire load:	0.10417 kWh
Protection class (IP):	IP20
Length:	51 mm
Height:	32.7 mm
Width:	30 mm
Rated impulse voltage:	4 kV
Contact resistance:	1 mOhm
Rated current:	25 A
Number of poles:	3
Color of coding/contact insert:	white
Type of distributor:	Distribution block
Rated voltage:	250 V
Material of the housing:	Polyamide (PA)
Pole marking:	L, N, PE
Halogen-free:	yes
Surface treatment of contacts:	tinned
Mechanical coding:	yes
Color of the separate adapter piece:	without adapter piece
Degree of pollution:	3
Type of integrated circuit:	without
Type of Locking:	integrated in the connector
Mounting option:	no
Rated current to the light:	25 A
Max. continuous temperature resistance of contact part:	85 °C
Max. continuous temperature resistance of strain relief:	105 °C
