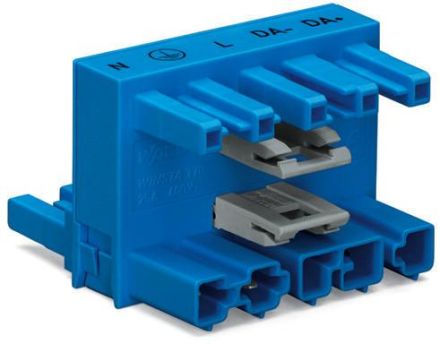

Wago 770-992 H-distributor PA series 770 5 inputs 5 pins

In stock
SKU: 977166
€17.88
Into a basketIn the basketGo

Overview

770-992 h-VERTEILER 5-PM 2 VK, KOD I

Property Value
Contact material: CuSn
Inputs: 5
Outputs: 10
Fire load: 0.17306 kWh
Protection class (IP): IP20
Length: 51 mm
Height: 36.7 mm
Width: 50 mm
Rated impulse voltage: 6 kV
Contact resistance: 1 mOhm
Rated current: 25 A
Number of poles: 5
Color of coding/contact insert: blue
Type of distributor: Distribution block
Rated voltage: 400 V
Material of the housing: Polyamide (PA)
Halogen-free: yes
Surface treatment of contacts: tinned
Mechanical coding: yes
Color of the separate adapter piece: without adapter piece
Degree of pollution: 3
Type of integrated circuit: without
Type of Locking: integrated in the connector
Mounting option: no
Rated current to the light: 25 A
Max. continuous temperature resistance of contact part: 85 °C
Max. continuous temperature resistance of strain relief: 105 °C

Characteristics

Rated surge voltage6 kV
Minimal order25 pcs
ManufacturerWago
HAN770-992
GTIN4045454706890
Rated voltage400V
Rated current25A
Width50 mm
Halogen freeYes
Height36.7 mm
Length51 mm
Number of poles5
IP protection)IP20
Degree of contamination3
Housing materialPolyamide (PA)
