Wago 771-5001/211-000 connecting cable 5p H05Z1Z1-F 1.5qmm

In stock

SKU: 975861

Price on request

€35.75

€0

Overview

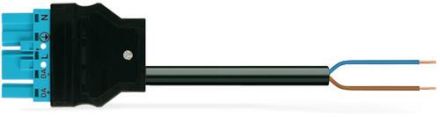

prefabricated connection cable, B2ca, plug/open end, 5-pin, code I, H05Z1Z1-F 2 x 1.50 mm², 7 m, 1.50 mm², blue

Property	Value
Length:	7000 mm
Version side 1:	Plug
Version side 2:	free cable end
Sheath color:	black
Rated voltage:	250 V
Stripping length:	9 mm
Nominal conductor cross-section:	1.5 mm²
Rated impulse voltage:	4 kV
Voltage resistance:	1 mOhm
Housing color:	black
Protection class (IP):	IP20
Color of coding/contact insert:	blue
Type of pre-assembled cable:	Connection cable
Degree of contamination:	3
Conductor end treatment:	ultrasonic-compressed wire ends
Mechanical coding:	yes
Cable permanently temperature-resistant up to:	70 °C
Insulating part permanently temperature-resistant up to:	105 °C
Surface treatment of contacts:	tinned
Halogen-free:	yes
Fire load:	0.18778 kWh
Stripping length:	48 mm
Number of poles:	5
Type of locking:	separate
Cable diameter:	6.8 to 8.6 mm
Cable type:	H05Z1Z1-F
Max. Operating temperature at conductor:	75 °C
Fire behaviour according to EN 13501-6: Class:	B2ca
