Wago 771-8995/208-101 System connection H05VV-F 5x4qmm

In stock

SKU: 975390

Price on request

€21.62

€0

Overview

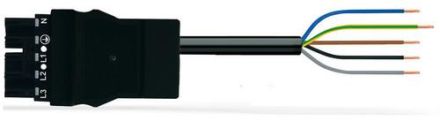

prefabricated connection cable, Eca, plug/open end, 5-pin, code A, H05VV-F 5G 4.0 mm², 1 m, 4.00 mm², black

Property	Value
Length:	1000 mm
Version side 1:	Plug
Version side 2:	free cable end
Sheath color:	black
Rated voltage:	400 V
Stripping length:	9 mm
Nominal conductor cross-section:	4 mm²
Rated impulse voltage:	6 kV
Voltage resistance:	1 mOhm
Housing color:	black
Protection class (IP):	IP20
Rated current:	25 A
Color of coding/contact insert:	black
Type of pre-assembled cable:	other
Degree of contamination:	3
Conductor end treatment:	ultrasonic-compressed wire ends
Mechanical coding:	yes
Cable permanently temperature-resistant up to:	70 °C
Insulating part permanently temperature-resistant up to:	105 °C
Surface treatment of contacts:	tinned
Halogen-free:	no
Fire load:	8.48528 kWh
Stripping length:	55 mm
Number of poles:	5
Type of locking:	separate
Cable diameter:	13 to 16.1 mm
Cable type:	H05VV-F
Max. Operating temperature at conductor:	75 °C
Fire behaviour according to EN 13501-6: Class:	Eca
