Wago 771-9295/017-701 system connection 5p H05Z1Z1-F 2.5qmm

In stock

SKU: 971709

Price on request

€88.33

€0

Overview

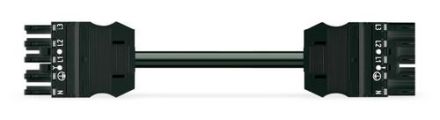

prefabricated connecting cable, B2ca, socket plug, 5-pin, code A, H05Z1Z1-F 5G 1.5 mm², 7 m, 2.50 mm², black

Property	Value
Length:	7000 mm
Version side 1:	Socket
Version side 2:	Plug
Sheath color:	black
Rated voltage:	400 V
Nominal conductor cross-section:	2.5 mm²
Rated impulse voltage:	6 kV
Voltage resistance:	1 mOhm
Housing color:	black
Protection class (IP):	IP20
Rated current:	20 A
Color of coding/contact insert:	black
Type of pre-assembled cable:	Connection cable
Degree of pollution:	3
Mechanical coding:	yes
Cable permanently temperature-resistant up to:	70 °C
Insulating part permanently temperature-resistant up to:	105 °C
Surface treatment of contacts:	tinned
Halogen-free:	yes
Fire load:	0.30028 kWh
Number of poles:	5
Locking type:	separate
Cable diameter:	11.2 to 13.9 mm
Cable type:	H05Z1Z1-F
Max. operating temperature on conductor:	75 °C
Fire behavior according to EN 13501-6: Class:	B2ca
