Wago 771-9395/267-801 connecting cable 5p series 771 H05Z1Z1-F

In stock

SKU: 963836

Price on request

€72.48

€0

Overview

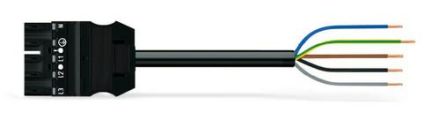

prefabricated connection cable, Cca, plug/open end, 5-pin, code A, H05Z1Z1-F 5G 2.5 mm², 8 m, 2.50 mm², black

Property	Value
Length:	8000 mm
Version side 1:	Plug
Version side 2:	free cable end
Sheath color:	black
Rated voltage:	400 V
Stripping length:	9 mm
Nominal conductor cross-section:	2.5 mm²
Rated impulse voltage:	6 kV
Voltage resistance:	1 mOhm
Housing color:	black
Protection class (IP):	IP20
Rated current:	20 A
Color of coding/contact insert:	black
Type of pre-assembled cable:	other
Degree of contamination:	3
Conductor end treatment:	ultrasonic-compressed wire ends
Mechanical coding:	yes
Cable permanently temperature-resistant up to:	70 °C
Insulating part permanently temperature-resistant up to:	105 °C
Surface treatment of contacts:	tinned
Halogen-free:	yes
Fire load:	0.15833 kWh
Stripping length:	55 mm
Number of poles:	5
Type of locking:	separate
Cable diameter:	11.2 to 13.9 mm
Cable type:	H05Z1Z1-F
Max. Operating temperature at conductor:	75 °C
Fire behaviour according to EN 13501-6: Class:	Cca
