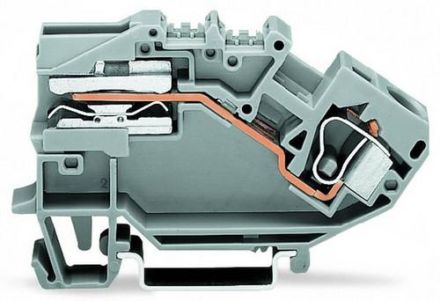

Wago 784-623 topJob POT.COMPENSATION TERMINAL GREY 16 QMM

Wago 784-623 topJob POT.COMPENSATION TERMINAL GREY 16 QMM

In stock

SKU: 982243

Price on request

€5.03

€0

Into a basketIn the basketGo

Overview

topJob POT. COMPENSATION TERMINAL GRAY 16 QMM

Property	Value
Operating temperature:	105 °C
Color:	other
QS single-wire:	0.2 to 10 mm²
QS fine-wire:	0.2 to 10 mm²
QS multi-wire:	0.2 to 10 mm²
Design of the electrical connection:	Spring-loaded connection
Rated current In:	57 A
Rated voltage:	400 V
Number of terminal points:	1
Mounting type:	DIN rail TH35
Connection plate required:	yes
Suitable for N busbar:	3x10 mm
Flammability class of the insulating material according to UL94:	5V
Material of the insulating body:	Thermoplastic
Width:	10 mm
Height:	82.5 mm
Depth:	43.5 mm

Characteristics

Minimal order25 pcs

Manufacturer

HAN784-623

GTIN4045454016999

Design of the electrical connectionSpring-loaded connection

Rated voltage400V

Rated current In57 A

Operating temperatur105°C

Width10 mm

Color

Height82.5 mm

Mounting typeDIN rail TH35

Depth43.5 mm

Wago 784-623 topJob POT.COMPENSATION TERMINAL GREY 16 QMM

Wago 784-623 topJob POT.COMPENSATION TERMINAL GREY 16 QMM

Price on request

€5.03

€0

Into a basketIn the basketGo

Delivery in Europe

We will deliver your order to all European cities.

We are located

8200-121 Albufeira.R. Dr. Diogo Leote 35.

24 hours

We will send the order within 24 hours.
