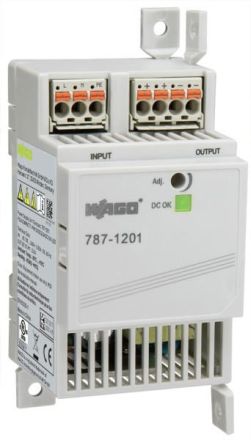

Wago 787-1201 1-phase DC 12V 2.5A primary switched mode power supply

In stock

SKU: 825026

Price on request

€45.46

€0

Overview

787-1201 1-phase DC 12V 2.5A primary switch mode power supply Manufacturer article number: 787-1201, Manufacturer article name: 1-phase DC 12V 2.5A primary switch mode

Property	Value
1. Output voltage:	10 to 14 V
Type of supply voltage:	AC/DC
Max. Output current 1:	2.5 A
Output voltage adjustable:	yes
Rated supply voltage at AC 50 Hz:	90 to 264 V
Rated supply voltage at DC:	125 to 375 V
Rated supply voltage at AC 60 Hz:	90 to 264 V
Short-circuit proof:	yes
Stabilized:	yes
Suitable for safety functions:	no
Direct mounting possible:	no
Design of the electrical connection:	spring-loaded connection
Output voltage regulated:	yes
Suitable for series installation:	no
Rail mounting possible:	yes
Wall mounting possible:	no
Protection class (IP):	IP20
Width:	54 mm
Height:	90 mm
Depth:	56 mm
Rated output voltage 1:	12 V
Rated output current 1:	2.5 A
Width in pitch units:	3
