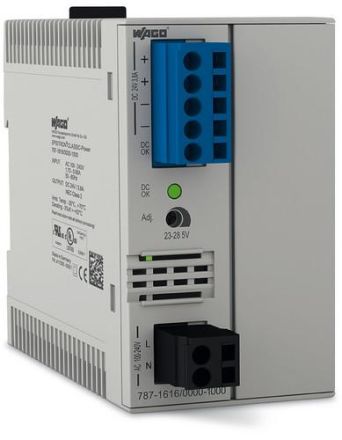

Wago 787-1616/000-1000 DC power supply 1Ph, 24V 3.8A

In stock

SKU: 976252

Price on request

€182.70

€0

Overview

Primary switch-mode power supply, Classic, 1-phase, output voltage DC 24 V, output current 3.8 A, NEC Class 2, DC-OK signal

Property	Value
1. Output voltage:	23 to 28.5 V
Type of supply voltage:	AC/DC
Max. Output current 1:	3.8 A
Output voltage adjustable:	yes
Rated supply voltage AC 50 Hz:	85 to 264 V
Rated supply voltage DC:	120 to 372 V
Rated supply voltage AC 60 Hz:	85 to 264 V
Short-circuit proof:	yes
Stabilized:	yes
Suitable for Safety functions:	no
Direct mounting possible:	no
Design of the electrical connection:	Spring-loaded connection
Output voltage regulated:	yes
Suitable for series installation:	no
Rail mounting possible:	yes
Wall mounting possible:	no
Protection class (IP):	IP20
Width:	52 mm
Height:	90 mm
Depth:	119 mm
Nominal output voltage 1:	24 V
Nominal output current 1:	3.8 A
Width in pitch units:	3
