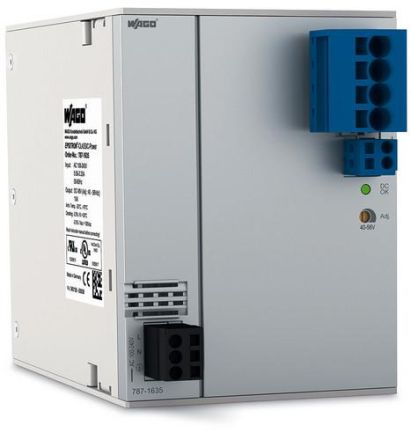

Wago 787-1635/000-070 DC power supply 40V 85VUC 120VUC

In stock

SKU: 971371

Price on request

€645.92

€0

Overview

Primary switch-mode power supply, Classic, 1-phase, output voltage DC 48 V, output current 10 A, TopBoost, DC-OK contact

Property	Value
1. Output voltage:	40 to 56 V
Type of supply voltage:	AC/DC
Max. Output current 1:	10 A
Output voltage adjustable:	yes
Rated supply voltage AC 50 Hz:	85 to 264 V
Rated supply voltage DC:	120 to 372 V
Rated supply voltage AC 60 Hz:	85 to 264 V
Short-circuit proof:	yes
Stabilized:	yes
Suitable for Safety functions:	no
Direct mounting possible:	no
Design of the electrical connection:	Spring-loaded connection
Output voltage regulated:	yes
Suitable for series installation:	no
Rail mounting possible:	yes
Wall mounting possible:	no
Protection class (IP):	IP20
Width:	95 mm
Height:	127 mm
Depth:	170 mm
Nominal output voltage 1:	48 V
Nominal output current 1:	10 A
Width in pitch units:	6

Type of voltage of the supply voltageAC/DC

Short circuit proofYes

Manufacturer

HAN787-1635/000-070

GTIN4055143752732

Design of the electrical connectionSpring-loaded connection

Width95 mm

Width in pitch units6

Suitable for series installationNo

Suitable for security functionsNo

Height127 mm

IP protection)IP20

Depth170 mm

Mounting rail possibleYes
