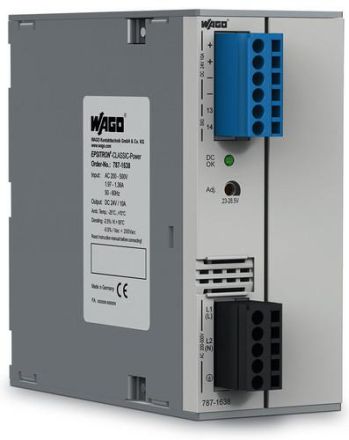

Wago 787-1638 SMPS

In stock

SKU: 971375

Price on request

€369.48

€0

Overview

Primary switch-mode power supply, Classic, 2-phase, output voltage DC 24 V, output current 10 A, TopBoost, DC-OK contact

Property	Value
1. Output voltage:	23 to 28.5 V
Type of supply voltage:	AC/DC
Max. Output current 1:	10 A
Output voltage adjustable:	yes
Rated supply voltage AC 50 Hz:	180 to 550 V
Rated supply voltage DC:	254 to 780 V
Rated supply voltage AC 60 Hz:	180 to 550 V
Short-circuit proof:	yes
Stabilized:	yes
Suitable for safety functions:	no
Direct mounting possible:	no
Design of the electrical connection:	Spring-loaded connection
Output voltage regulated:	yes
Suitable for series installation:	no
Rail mounting possible:	yes
Wall mounting possible:	no
Protection class (IP):	IP20
Width:	55 mm
Height:	127 mm
Depth:	146.5 mm
Nominal output voltage 1:	24 V
Nominal output current 1:	10 A
Width in pitch units:	3
