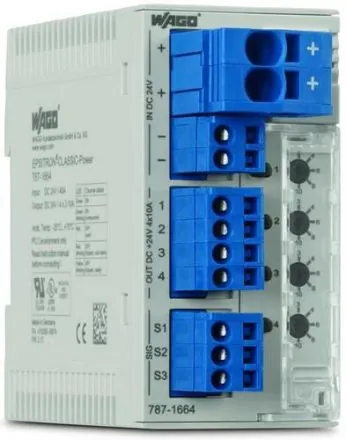

Electronic circuit breaker, 4-channel, input voltage DC 24 V, adjustable 2 ... 10 A, communication-capable, NPN signaling
| Property | Value |
| Design of the electrical connection: | Spring-loaded connection |
| Width: | 45 mm |
| Height: | 90 mm |
| Depth: | 115.5 mm |
| With removable terminals: | yes |
| 1-phase undercurrent possible: | no |
| 3-phase undercurrent possible: | no |
| 1-phase overcurrent possible: | yes |
| 3-phase overcurrent possible: | no |
| 1-phase window possible: | no |
| 3-phase window possible: | no |
| Contains DC undercurrent function: | no |
| Contains DC overcurrent function: | yes |
| DC window function: | no |
| Current measuring range: | 2 to 10 A |
| External current transformer: | no |
