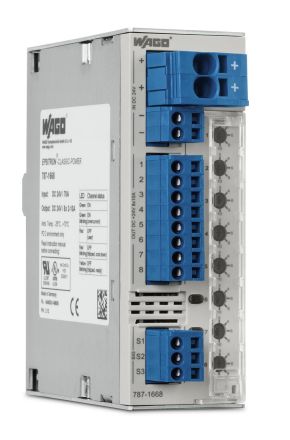

Wago 787-1668/000-004 Current monitor DC series 787 2-10A

Wago 787-1668/000-004 Current monitor DC series 787 2-10A

In stock

SKU: 521728

Price on request

€298.67

€0

Into a basketIn the basketGo

Overview

Electronic circuit breaker, 8-channel, input voltage DC 24 V, adjustable 2 . 10 A, communication-capable, special configuration

Property	Value
Voltage type for actuation:	DC
Design of the electrical connection:	Spring-loaded connection
Width:	42 mm
Height:	127 mm
Depth:	142.5 mm
With removable terminals:	yes
1-phase undercurrent possible:	no
3-phase undercurrent possible:	no
1-phase overcurrent possible:	yes
3-phase overcurrent possible:	no
1-phase window possible:	no
3-phase window possible:	no
Contains DC undercurrent function:	no
Contains DC overcurrent function:	no
DC window function:	no
Current measuring range:	2 to 10 A
Rated control supply voltage Us for DC:	18 to 30 V
External current transformer:	no

Characteristics

HABEPSITR

Manufacturer

HAN787-1668/000-004

GTIN4050821804352

Design of the electrical connectionSpring-loaded connection

Rated control supply voltage Us at DC18 to 30 V

Width42 mm

Height127 mm

With removable clampsYes

Voltage type for actuationDC

Depth142.5 mm

Wago 787-1668/000-004 Current monitor DC series 787 2-10A

Wago 787-1668/000-004 Current monitor DC series 787 2-10A

Price on request

€298.67

€0

Into a basketIn the basketGo
