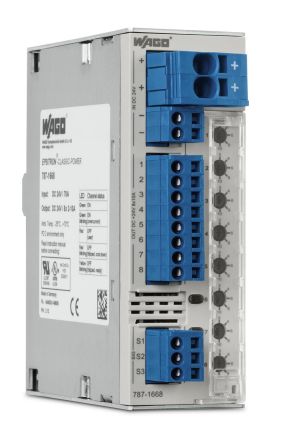

Wago 787-1668/106-000 24V DC 8x6A electronic circuit breaker

Wago 787-1668/106-000 24V DC 8x6A electronic circuit breaker

In stock

SKU: 520295

Price on request

€298.67

€0

Into a basketIn the basketGo

Overview

Electronic circuit breaker 8-channel input voltage DC 24 V adjustable 1 6 A communication capable

Property	Value
Voltage type for actuation:	DC
Design of the electrical connection:	Spring-loaded connection
Width:	42 mm
Height:	127 mm
Depth:	142.5 mm
With removable terminals:	yes
1-phase undercurrent possible:	no
3-phase undercurrent possible:	no
1-phase overcurrent possible:	yes
3-phase overcurrent possible:	no
1-phase window possible:	no
3-phase window possible:	no
Contains DC undercurrent function:	no
Contains DC voltage overcurrent function:	no
DC current window function:	no
Current measuring range:	1 to 6 A
Rated control supply voltage Us for DC:	18 to 30 V
External current transformer:	no

Characteristics

HAB787-1668/106-000 24V DC 8x6A

Manufacturer

HAN787-1668/106-000

GTIN4050821848363

Design of the electrical connectionSpring-loaded connection

Rated control supply voltage Us at DC18 to 30 V

Width42 mm

Height127 mm

With removable clampsYes

Voltage type for actuationDC

Depth142.5 mm
