Wago 787-6716/9310-100 sensor socket 3p sw 22.2mm(7/8) ger

Wago 787-6716/9310-100 sensor socket 3p sw 22.2mm(7/8) ger

In stock

SKU: 973331

Price on request

€136.49

€0

Into a basketIn the basketGo

Overview

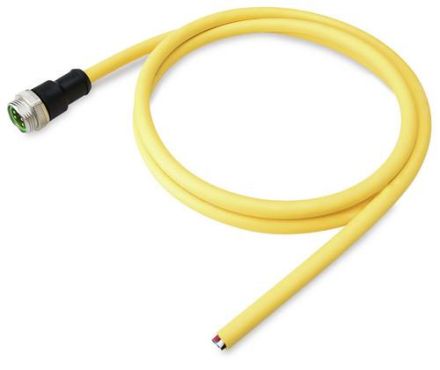

Supply cable, pre-assembled, 7/8 inch, 7/8 inch, 3-pin, socket, straight, length 10 m

Property	Value
Rated current In:	9 A
Cable sheath color:	yellow
With LED display:	no
Cable sheath material:	Polyurethane (PUR)
Contact base material:	other
Number of poles:	3
Field-side connection:	7/8 inch connector
Type of plug contact, field-side:	Female (socket)
Cable feed, field-side:	straight
Connection, housing-side:	free cable end
Cable length:	10 m
Halogen-free:	no
Radiation-crosslinked:	no
Material of Contact coating:	other
Permissible external cable temperature after installation without vibration:	-40 to 80 °C
Permissible external cable temperature during installation/handling:	-25 to 80 °C
Rated voltage:	600 V
Protection class (IP):	IP67

Characteristics

Manufacturer

HAN787-6716/9310-100

GTIN4055143727068

Rated voltage600V

Rated current In9 A

Halogen freeNo

Cable length10m

With LED displayNo

Number of poles3

IP protection)IP67
