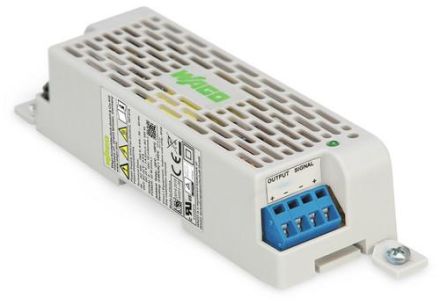

Wago 787-914 SMPS

In stock

SKU: 972496

Price on request

€60.62

€0

Overview

Primary switch-mode power supply, 1-phase, output voltage DC 22 V, output current 1 A

Property	Value
1. Output voltage:	12 to 22 V
Type of supply voltage:	AC/DC
Max. Output current 1:	0.8 A
Output voltage adjustable:	yes
Rated supply voltage AC 50 Hz:	90 to 264 V
Rated supply voltage DC:	130 to 373 V
Rated supply voltage AC 60 Hz:	90 to 264 V
Short-circuit proof:	yes
Stabilized:	yes
Suitable for Safety functions:	no
Direct mounting possible:	no
Design of the electrical connection:	Spring-loaded connection
Output voltage regulated:	yes
Suitable for series installation:	no
Rail mounting possible:	yes
Wall mounting possible:	yes
Protection class (IP):	IP20
Width:	35 mm
Height:	45 mm
Depth:	138 mm
Rated output current 1:	0.8 A
Width in pitch units:	2
