Wago 792-804 Type MD48LON DC 48V surge protector

Wago 792-804 Type MD48LON DC 48V surge protector

In stock

SKU: 519534

Price on request

€88.61

€0

Into a basketIn the basketGo

Overview

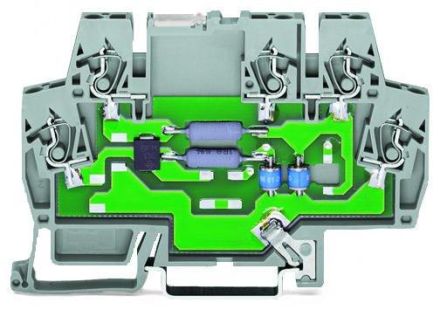

Surge protection module for signal technology, nominal voltage DC 48 V, for 2 signal paths with common discharge, for symmetrical interfaces, 2-stage, width 6 mm, 2.50 mm²

Property	Value
Signaling on the device:	without
Mounting type:	DIN rail TH35
Nominal discharge current (8/20):	5 kA
Nominal load current:	1.7 A
Connection 1:	Terminal
Highest continuous voltage DC:	55 V
Highest continuous voltage AC:	38.5 V
Protection level wire/wire:	100 V
Protection level wire/earth:	750 V
With remote signaling contact:	no
Explosion-tested version:	no
Arrester monitoring:	no
Nominal voltage DC:	48 V
Limit frequency:	6 MHz

Characteristics

Explosion-tested versionNo

With remote signaling contactNo

Connection 1Clamp

Highest continuous voltage DC55 V

Nominal load current1.7 A

Nominal voltage DC48 V

Protection level wire/wire100 V

Protection level wire/earth750 V

Limit frequency6 MHz

HAB792-804 Type MD48LON DC 48V

Manufacturer

HAN792-804

GTIN4017332780773

Highest continuous voltage AC38.5V

Mounting typeDIN rail TH35

Nominal discharge current (8/20)5kA

Signaling on the deviceWithout
