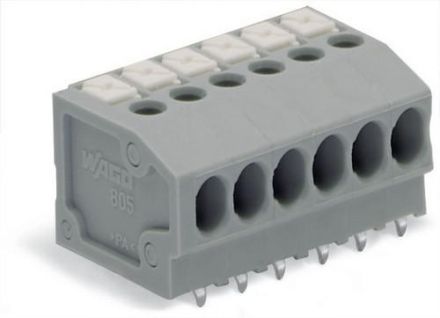

Wago 805-168 PCB terminal

In stock

SKU: 964372

Price on request

€7.90

€0

Overview

PCB terminal, push-button, 1.5 mm², pitch 3.5 mm, 18-pin, Push-in CAGE CLAMP®, with test opening, 1.50 mm², gray

Property	Value
Connectable conductor cross-section, single-wire:	0.2 to 1.5 mm²
Connectable conductor cross-section, fine-wire with wire end ferrule:	0.25 to 1 mm²
Connectable conductor cross-section, fine-wire without wire end ferrule:	0.2 to 1.5 mm²
Connectable conductor cross-section stranded:	0.2 to 1.5 mm²
Conductor connection type:	Spring-loaded connection
PCB connection type:	Solder connection
Number of electrical connections:	18
Number of levels:	1
Type of banding:	without
Type of PCB fastening:	Connection contact
Fastening type:	soldering
Rated voltage:	160 V
Rated impulse voltage:	2.5 kV
Rated current In:	17.5 A
Operating temperature:	-60 to 105 °C
Flammability class of the insulating material according to UL94:	V0
Housing color:	gray
Height:	10.5 mm
Length of Pins:	3.2 mm
Connection pitch:	3.5 mm
Overvoltage category:	III
Pollution level:	2
Connection surface material:	Tin
Insulating body material:	Thermoplastic
Angle circuit board/conductor connection:	0°/180° (horizontal)
