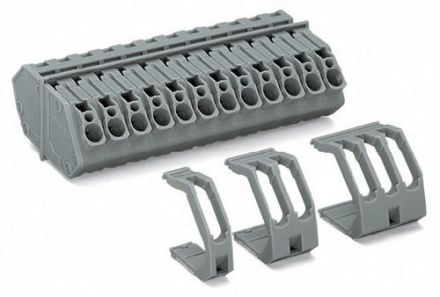

Wago 826-164 terminal block 0.08-4qmm series 826 32A 4p

In stock
SKU: 978779
€13.67
Into a basketIn the basketGo

Overview

826-164 DF-KNLeis. 4QMM 7MM 4-P.

Property Value
Number of poles: 4
Rated voltage: 320 V
Material of the insulating body: Thermoplastic
Rated current In: 32 A
Color: gray
Operating temperature: -60 to 105 °C
QS fine-stranded: 0.08 to 4 mm²
QS single-wire: 0.08 to 4 mm²
QS multi-wire: 0.08 to 4 mm²
QS wire end ferrule: 0.25 to 2.5 mm²
Mounting type: other
Design of electrical connection 1: spring-loaded connection
Design of electrical connection 2: spring-loaded connection
Number of Terminal points per pole: 2
Flammability class of the insulating material according to UL94: V0
End plate required: yes
Explosion-tested version Ex e: no
Transparent: no
Width: 7 mm
Height: 23.55 mm
Depth: 42.5 mm

Characteristics

Minimal order50 pcs
ManufacturerWago
HAN826-164
GTIN4044918532747
Rated voltage320V
Rated current In32 A
Operating temperatur-60 to 105 °C
Width7 mm
ColorGray
Height23.55 mm
Mounting typeOther
Number of poles4
Depth42.5 mm
TransparentNo
Wago 826-164 terminal block 0.08-4qmm series 826 32A 4p
Wago 826-164 terminal block 0.08-4qmm series 826 32A 4p
€13.67
Into a basketIn the basketGo
