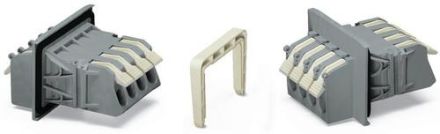

Wago 828-334 10mm², spring feed-through terminal gr 4p

In stock

SKU: 978785

Price on request

€28.68

€0

Overview

828-334 TRANSIT-AIRPORT DISTANCE. 4-P.10QMM

Property	Value
QS single-core:	1.5 to 16 mm²
QS fine-core:	1.5 to 16 mm²
QS wire end ferrule:	1.5 to 10 mm²
Connection position:	side
Rated current In:	41 A
Operating temperature:	-60 to 105 °C
Rated voltage:	1000 V
Design of electrical connection 1:	Spring-loaded connection
Design of electrical connection 2:	Spring-loaded connection
Number of terminal points per pole:	2
Mounting type:	other
Flammability class of the insulating material according to UL94:	V0
Width/grid dimension:	65.1 mm
End plate required:	no
Color:	gray
With integrated feedthrough flange:	no
Thickness of the mounting plate:	3 mm
Number of poles:	4
Explosion-tested version Ex e:	no
Material of the insulating body:	Thermoplastic
