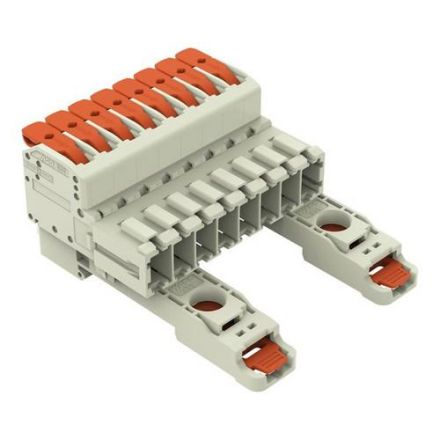

Wago 831-1208/306-000 1-conductor pin strip, lever, push-in CAG

In stock

SKU: 966604

Price on request

€24.91

€0

Overview

1-conductor pin header, lever, Push-in CAGE CLAMP®, 10 mm², pitch 7.62 mm, 8-pin, 100% protected against mismating, TS 35/surface mounting, 10.00 mm², light gray

Property	Value
Number of poles:	8
Rated voltage:	1000 V
Material of the insulating body:	Thermoplastic
Rated current In:	41 A
Color:	grey
Operating temperature:	-60 to 105 °C
QS fine-stranded:	0.5 to 10 mm²
QS single-stranded:	0.5 to 10 mm²
QS stranded:	0.5 to 10 mm²
QS wire end ferrule:	0.5 to 6 mm²
Mounting type:	DIN rail TH35
Electrical version Connection 1:	Spring-loaded connection
Design of electrical connection 2:	Spring-loaded connection
Number of terminal points per pole:	1
Flammability class of the insulating material according to UL94:	V0
End plate required:	no
Explosion-tested version Ex e:	no
Transparent:	no
Width:	7.62 mm
Height:	36.2 mm
Depth:	88.4 mm
