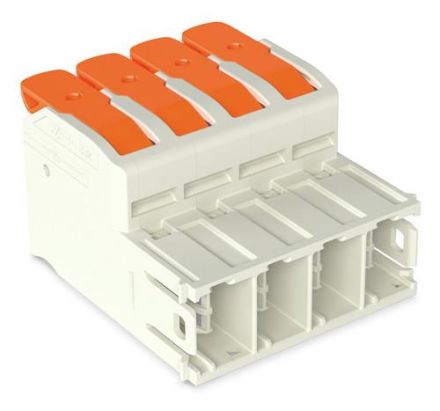

Wago 832-1204 100% mismating protected light grey 1-conductor pin strip

Wago 832-1204 100% mismating protected light grey 1-conductor pin strip

In stock

SKU: 766254

Price on request

€12.24

€0

Into a basketIn the basketGo

Overview

832-1204 100% mismating protected light gray 1-conductor pin header Manufacturer article number: 832-1204, Manufacturer article name: 100% mismating protected light gray

Property	Value
Number of poles:	4
Color:	gray
Rated voltage:	1000 V
Material of the insulating body:	Thermoplastic
Rated current In:	76 A
Operating temperature:	-60 to 120 °C
Connectable conductor cross-section, single-wire:	0.75 to 16 mm²
Connectable conductor cross-section, multi-wire:	0.75 to 25 mm²
Connectable conductor cross-section, fine-wire with wire end ferrule:	0.75 to 16 mm²
Connectable conductor cross-section, fine-wire without wire end ferrule:	0.75 to 25 mm²
Design of electrical connection 1:	Spring-loaded connection
Design of electrical connection 2:	Spring-loaded connection
Number of terminal points per pole:	1
Flammability class of the insulating material according to UL 94:	V0
End plate required:	no
Explosion-tested version 'Ex e':	no
Transparent:	no

Characteristics

HAB100% mismating protected light grey

Minimal order20 pcs

Manufacturer

HAN832-1204

GTIN4055143748988

Connectable conductor cross-section solid0.75 to 16 mm²

Connectable conductor cross-section stranded0.75 to 25 mm²

Rated voltage1000V

Rated current In76 A

Operating temperatur-60 to 120 °C

Flammability class of the insulating material according to UL 94V0

Color

Number of poles4

TransparentNo
