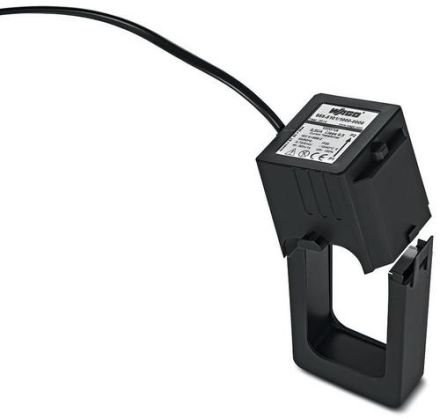

Wago 855-5105/1000-000 1000A/5A 3 m long cable split core current transformer

In stock
SKU: 839678
€142.17
Into a basketIn the basketGo

Overview

Compact, divisible cable-type current transformers, especially suitable for retrofitting in existing systems, they are particularly used in cases where the current path must not be interrupted, all transformers are designed with color-coded cables, two UV-resistant cable ties supplied ensure safe and easy installation, feedthrough for measuring conductors: Ø 42 mm x 48 mm

Property Value
Overcurrent limiting factor: FS 5
With touch protection: yes
Design: Cable-type current transformer
Primary rated current In: 1000 A
Secondary rated current: 5 A
Secondary rated apparent power: 0.5 VA
Accuracy class: 0.5
Snap fastening: yes
Number of primary inputs: 1
With copper bar: no
Opening diameter: 42 mm

Characteristics

Accuracy class0.5
HAB855-5105/1000-000 1000A/5A 3 m long
ManufacturerWago
HAN855-5105/1000-000
GTIN4055143056403
VersionCable split core current transformer
Wago 855-5105/1000-000 1000A/5A 3 m long cable split core current transformer
Wago 855-5105/1000-000 1000A/5A 3 m long cable split core current transformer
€142.17
Into a basketIn the basketGo
