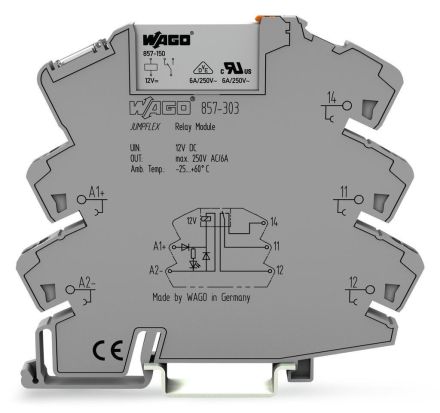

Wago 857-303 switching relay series 857 1W IP20

Wago 857-303 switching relay series 857 1W IP20

In stock

SKU: 522722

Price on request

€17.81

€0

Into a basketIn the basketGo

Overview

Relay module, nominal input voltage DC 12 V, 1 changeover contact, limiting continuous current 6 A, status indicator yellow, 6 mm width, 2.50 mm², gray

Property	Value
Number of contacts as changeover contact:	1
Rated control supply voltage Us at DC:	12 V
Type of voltage for actuation:	DC
Design of the electrical connection:	Spring-loaded connection
Drive, polarity:	polarized
Height:	94 mm
Width:	6 mm
Depth:	81 mm
Switching behavior of the drive:	monostable
Type of switching contact:	Single contact
With positively guided contacts:	no
With removable terminals:	no
Complete device with base:	yes
Protection class (IP):	IP20
Rated current:	6 A
With LED display:	yes

Characteristics

Complete device with baseYes

Drive, polarityPolarized

Type of switching contactSingle contact

Switching behavior of the driveMonostable

With positively guided contactsNo

HABJUMPFLEX

Manufacturer

HAN857-303

GTIN4055143135207

Number of contacts as changeover1

Design of the electrical connectionSpring-loaded connection

Rated control supply voltage Us at DC12V

Width6 mm

Height94 mm

With LED displayYes

With removable clampsNo

Rated current6A

IP protection)IP20

Voltage type for actuationDC

Depth81 mm
