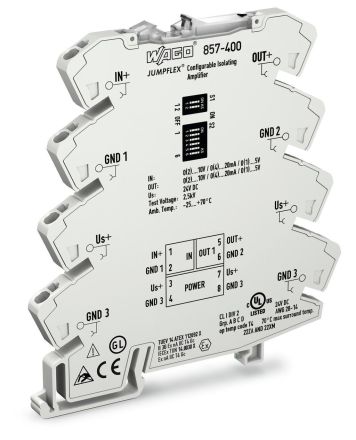

Wago 857-400 isolation amplifier

In stock

SKU: 519522

Price on request

€228.18

€0

Overview

Isolation amplifier, current and voltage input signal, current and voltage output signal, zero/span adjustment, configuration via DIP switch, supply voltage DC 24 V, 6 mm width, 2.50 mm²

Property	Value
Height:	96 mm
Depth:	94 mm
Width:	6 mm
Device design:	other
Load:	600 to 2000 Ohm
Mounting type:	Snap-on mounting rail
Type of power supply:	other
Rated operating frequency:	100 to 5000 Hz
Number of channels:	1
Protection class (IP):	IP20
Rated supply voltage for DC:	24 V
Number of input ranges 0 mA ... 20 mA:	1
Number of output ranges 0 mA ... 20 mA:	1
Number of input ranges 0 V ... 5 V:	1
Number of output ranges 1 V ... 5 V:	1
Galvanic isolation between supply voltage and all other circuits:	yes
Number of output ranges 2 V ... 10 V:	1
Galvanic isolation between input and output:	yes
Number of input ranges 4 mA ... 20 mA:	1
Number of output ranges 0 V ... 10 V:	1
Intrinsically safe according to EN 60947-5-6 NAMUR:	no
Number of input ranges 0 V ... 10 V:	1
Number of output ranges 0 V ... 5 V:	1
Number of input ranges 1 V ... 5 V:	1
Galvanic isolation between output to output:	no
Operating temperature:	-25 to 70 °C
Galvanic isolation between the inputs:	yes
Design of the electrical connection:	spring-loaded connection
Number of output ranges 4 mA ... 20 mA:	1
Temperature drift:	0.01 %/K
Number of input ranges 2 V ... 10 V:	1
Fault signal output:	no
