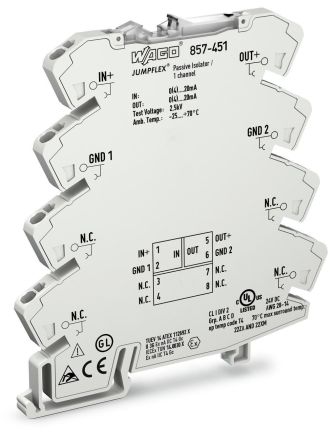

Wago 857-451 1-channel passive isolator

In stock

SKU: 519978

Price on request

€159.90

€0

Overview

Passive isolator, 1-channel current input signal current output signal power via input 6 mm width light gray

Property	Value
Height:	96 mm
Depth:	94 mm
Width:	6 mm
Device design:	other
Load:	600 Ohm
Mounting type:	Snap-on mounting rail
Type of power supply:	other
Rated operating frequency:	100 Hz
Number of channels:	1
Protection class (IP):	IP20
Number of input ranges 0 mA ... 20 mA:	1
Number of output ranges 0 mA ... 20 mA:	1
Galvanic isolation between supply voltage and all other circuits:	yes
Galvanic isolation between input and output:	yes
Number of input ranges 4 mA ... 20 mA:	1
Intrinsically safe according to EN 60947-5-6 NAMUR:	no
Galvanic isolation between output to output:	no
Operating temperature:	-25 to 70 °C
Galvanic isolation between the inputs:	yes
Design of the electrical connection:	Spring-loaded connection
Number of output ranges 4 mA ... 20 mA:	1
Temperature drift:	0.01 %/K
Fault signal output:	no
