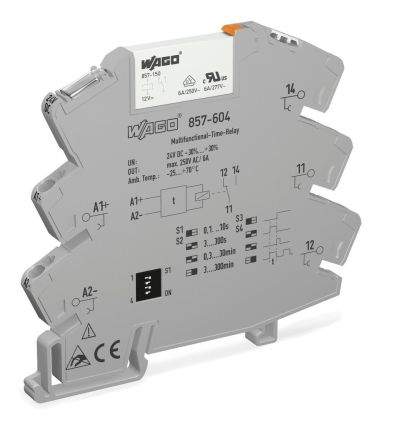

Wago 857-604 24VDC 1U time relay

In stock

SKU: 520322

Price on request

€53.22

€0

Overview

Time relay module, nominal input voltage DC 24 V, limiting continuous current 6 A, railway, multifunction, status display yellow, 6 mm width, gray

Property	Value
Number of outputs, delayed, changeover contact:	1
Design of the electrical connection:	Spring-loaded connection
Can be plugged onto contactor:	no
Outputs, switchable delayed/undelayed:	no
Type of voltage for actuation:	DC
Time range:	0.1 to 18000 s
Rated control supply voltage Us at DC:	24 V
Width:	6 mm
Depth:	81 mm
Height:	94 mm
With plug-in base:	yes
Remote control possible:	no
Suitable as remote control:	no
On-delayed function:	yes
Off-delayed function:	no
On-flickering function:	yes
Off-flickering function:	yes
Star/delta function:	no
Pulse-forming function:	no
Flashing function starting with pause, fixed time:	no
Flashing function starting with pulse, Fixed time:	no
Function clocking starting with pause, variable:	no
Function clocking starting with pulse, variable:	no
With semiconductor output:	no
Rated current:	6 A
Suitable for DIN rail mounting:	yes
Suitable for front mounting:	no
