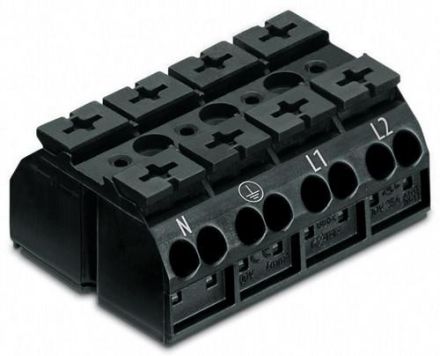

Wago 862-8534 terminal block 0.5-4qmm series 862 32A 4p

In stock
SKU: 970002
€5.49
Into a basketIn the basketGo

Overview

862-8534 CONNECTOR KL.4-PMRF PE AUFDR.

Property Value
Number of poles: 4
Rated voltage: 500 V
Material of the insulator: Thermoplastic
Rated current In: 32 A
Color: black
Operating temperature: 105 °C
QS finely stranded: 0.5 to 4 mm²
QS single-stranded: 0.5 to 4 mm²
QS multi-stranded: 0.5 to 4 mm²
QS wire end ferrule: 0.75 to 2.5 mm²
Mounting type: other
Design of electrical connection 1: spring-loaded connection
Design of electrical connection 2: spring-loaded connection
Number of terminal points per pole: 4
Flammability class of the insulating material according to UL94: V0
End plate required: no
Explosion-tested version Ex e: no
Transparent: no
Halogen-free: yes
Width: 48 mm
Height: 35 mm
Depth: 22.3 mm

Characteristics

Minimal order200 pcs
ManufacturerWago
HAN862-8534
GTIN4044918510431
Rated voltage500V
Rated current In32 A
Operating temperatur105°C
Width48 mm
ColorBlack
Halogen freeYes
Height35 mm
Mounting typeOther
Number of poles4
Depth22.3 mm
TransparentNo
