Wago 870-523/281-579 0.08-2.5mm², gr, 24VAC terminal block

In stock

SKU: 980335

Price on request

€17.80

€0

Overview

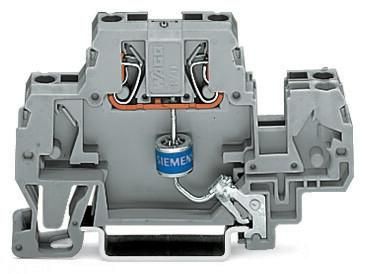

Component terminal, double-deck, with gas discharge tube, for mounting rail 35 x 15 and 35 x 7.5, 2.5 mm², CAGE CLAMP®, 2.50 mm², grey

Property	Value
Connectable conductor cross-section, single-wire:	0.08 to 2.5 mm²
Connectable conductor cross-section, fine-wire with wire end ferrule:	0.25 to 2.5 mm²
Connectable conductor cross-section, fine-wire without wire end ferrule:	0.08 to 4 mm²
Connectable conductor cross-section stranded:	0.08 to 2.5 mm²
Rated current In:	20 A
Operating temperature:	105 °C
Rated voltage:	24 V
Design of electrical connection 1:	Spring-loaded connection
Design of electrical connection 2:	Spring-loaded connection
Number of levels:	1
Number of terminal points per level:	2
Levels internally bridged:	no
Mounting type:	DIN rail TH35
Flammability class of the insulating material according to UL94:	V0
End plate required:	yes
Color:	grey
Component type:	Gas discharge tube
Explosion-tested version Ex e:	no
Material of the Insulating body:	Thermoplastic
Width:	10 mm
Height:	70 mm
Depth:	40 mm
