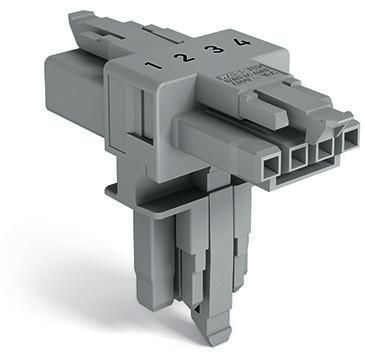

Wago 890-1731 T-distributor

In stock

SKU: 967144

Price on request

€8.49

€0

Overview

T-distributor, 4-pin, code B, 1 input, 2 outputs, 3 locking latches, for flying connections, gray

Property	Value
Contact material:	CuSn
Inputs:	4
Outputs:	8
Fire load:	0.05778 kWh
Protection class (IP):	IP20
Length:	54 mm
Height:	39.6 mm
Width:	22.3 mm
Rated impulse voltage:	6 kV
Contact resistance:	1 mOhm
Rated current:	16 A
Number of poles:	4
Color of coding/contact insert:	gray
Type of distributor:	T-distributor
Rated voltage:	400 V
Material of the housing:	Polyamide (PA)
Halogen-free:	no
Surface treatment of contacts:	tinned
Mechanical coding:	yes
Color of the separate adapter piece:	without adapter piece
Degree of pollution:	3
Type of integrated circuit:	without
Type of locking:	integrated in the connector
Fastening option:	no
Rated current to the luminaire:	16 A
Max. continuous temperature resistance of contact part:	85 °C
Max. continuous temperature resistance of strain relief:	105 °C
