Wago 899-631/189-000 Compact distributor PA distribution board 1 input

In stock

SKU: 972892

Price on request

€77.17

€0

Overview

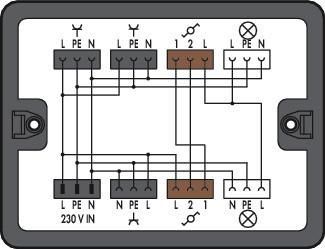

Distribution box, changeover switch, 1 input, 7 outputs, code A, S, MIDI, black

Property	Value
Contact material:	other
Inputs:	1
Outputs:	3
Fire load:	20.90611 kWh
Protection class (IP):	IP20
Length:	190 mm
Height:	30 mm
Width:	145 mm
Rated impulse voltage:	4 kV
Contact resistance:	1 mOhm
Rated current:	25 A
Number of poles:	3
Color of coding/contact insert:	multi-colored
Type of distributor:	Distribution block
Rated voltage:	250 V
Housing material:	Polyamide (PA)
Halogen-free:	yes
Surface treatment of contacts:	tinned
Mechanical coding:	yes
Color of the separate adapter piece:	without adapter piece
Pollution level:	3
Type of integrated circuit:	alternating circuit
Locking type:	integrated in the connector
Mounting option:	via separate adapter
Rated current to the light:	25 A
Max. continuous temperature resistance of contact part:	85 °C
Max. continuous temperature resistance of strain relief:	105 °C
