Wago 899-631/421-000 Distribution block PA Series 899 1 input 5 pin

In stock

SKU: 970963

Price on request

€65.69

€0

Overview

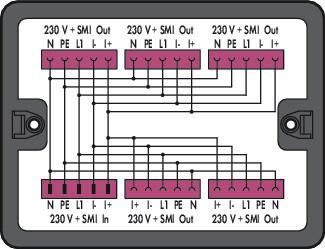

Distribution box, 230 V + SMI, 1 input, 5 outputs, code B, MIDI, black

Property	Value
Contact material:	other
Inputs:	1
Outputs:	5
Fire load:	28.08667 kWh
Protection class (IP):	IP20
Length:	190 mm
Height:	30 mm
Width:	145 mm
Rated impulse voltage:	4 kV
Contact resistance:	1 mOhm
Rated current:	20 A
Number of poles:	5
Color of coding/contact insert:	other
Type of distributor:	Distribution block
Rated voltage:	250 V
Housing material:	Polyamide (PA)
Halogen-free:	yes
Surface treatment of contacts:	tinned
Mechanical coding:	yes
Color of the separate adapter piece:	without adapter piece
Pollution level:	3
Type of integrated circuit:	without
Type of Locking:	integrated in the connector
Mounting option:	via separate adapter
Rated current to the light:	20 A
Max. continuous temperature resistance of contact part:	85 °C
Max. continuous temperature resistance of strain relief:	105 °C
