Wago 899-631/478-000 Distribution block PA 1in 3p 7out IP20

In stock
SKU: 970463
€76.97
Into a basketIn the basketGo

Overview

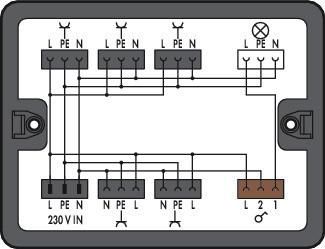

Distribution box, switching off, 1 input, 7 outputs, code A, S, MIDI

Property Value
Contact material: other
Inputs: 1
Outputs: 7
Fire load: 3.09528 kWh
Protection class (IP): IP20
Length: 190 mm
Height: 30 mm
Width: 145 mm
Contact resistance: 1 mOhm
Number of poles: 3
Color of coding/contact insert: black
Type of distributor: Distribution block
Material of the housing: Polyamide (PA)
Halogen-free: yes
Surface treatment of contacts: tinned
Mechanical coding: yes
Color of the separate adapter piece: without adapter piece
Degree of pollution: 3
Type of integrated circuit: without
Type of locking: integrated in the connector
Fastening option: via separate adapter
Max. continuous temperature resistance of contact part: 85 °C
Max. Continuous temperature resistance strain relief: 105 °C

Characteristics

ManufacturerWago
HAN899-631/478-000
GTIN4055143941983
Width145 mm
Halogen freeYes
Height30 mm
Length190 mm
Number of poles3
IP protection)IP20
Degree of contamination3
Housing materialPolyamide (PA)
