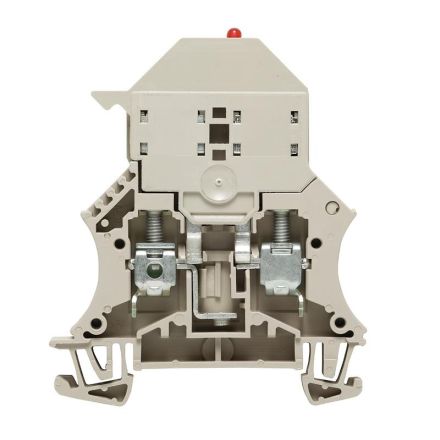

Weidmüller 1011300000 WSI 6/LD 10-36V DC/AC fuse terminal

In stock

SKU: 640551

Price on request

€9.79

€0

Overview

Terminal block for connecting or joining conductors with a permanently secure contact. Hardened steel withstands mechanical forces, tin-coated copper ensures the best conductivity. With removable carrier for a fuse insert.

Property	Value
Connectable conductor cross-section, single-wire:	0.5 to 10 mm²
Connectable conductor cross-section, multi-wire:	1.5 to 10 mm²
Connectable conductor cross-section, fine-wire without wire end ferrule:	0.5 to 10 mm²
Connectable conductor cross-section, fine-wire with wire end ferrule:	0.5 to 6 mm²
Operating temperature:	-50 to 120 °C
Rated current In:	6.3 A
Design of the fuse insert:	G-fuse 5x20 mm
Design of the fuse holder:	pivoting
Type of display element for the defect display:	LED
Supply voltage for the defect display:	36 V
Type of voltage for the defect display:	AC/DC
Rated voltage:	36 V
Design of electrical connection 1:	Screw connection
Number of levels:	1
Mounting type:	DIN rail TH35
Color:	beige
End plate required:	yes
Flammability class of the insulating material according to UL 94:	V0
Material of the insulating body:	Thermoplastic
