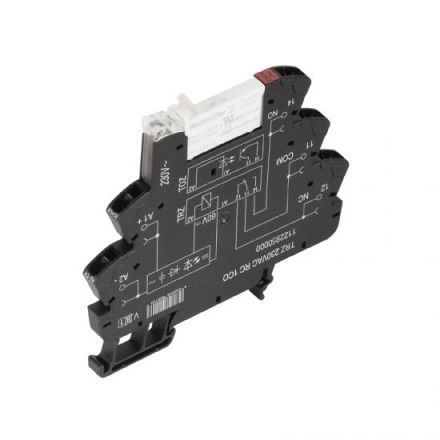

Weidmüller 1122950000 TRZ 230VAC RC 1CO relay coupler

Weidmüller 1122950000 TRZ 230VAC RC 1CO relay coupler

In stock

SKU: 648946

Price on request

€22.03

€0

Into a basketIn the basketGo

Overview

Relay coupler as assembled module consisting of plug-in relay and plug-in base. The control and load circuits are galvanically separated.

Property	Value
Number of contacts as changeover contacts:	1
Rated control supply voltage Us at AC 50 Hz:	207 to 253 V
Rated control supply voltage Us at AC 60 Hz:	207 to 253 V
Type of voltage for actuation:	AC
Design of the electrical connection:	Spring-loaded connection
Drive, Polarity:	unpolarized
Height:	90.5 mm
Width:	6.4 mm
Depth:	87.8 mm
Switching behavior of the drive:	monostable
Type of switching contact:	single contact
With positively guided contacts:	no
With removable terminals:	no
Complete device with base:	yes
Protection class (IP):	IP20
With LED display:	yes

Characteristics

Complete device with baseYes

Drive, polarityUnpolarized

Type of switching contactSingle contact

Switching behavior of the driveMonostable

With positively guided contactsNo

HABTRZ 230VAC RC 1CO

Manufacturer

HAN1122950000

GTIN4032248904969

Number of contacts as changeover1

Design of the electrical connectionSpring-loaded connection

Rated control supply voltage Us at AC 50 Hz207 to 253 V

Rated control supply voltage Us at AC 60 Hz207 to 253 V

Width6.4 mm

Height90.5 mm

With LED displayYes

With removable clampsNo

IP protection)IP20

Voltage type for actuationAC

Depth87.8 mm
