Weidmüller 2063180000 RCIKIT 230VAC 2CO LD/V relay coupler

Weidmüller 2063180000 RCIKIT 230VAC 2CO LD/V relay coupler

In stock

SKU: 649090

Price on request

€22.20

€0

Into a basketIn the basketGo

Overview

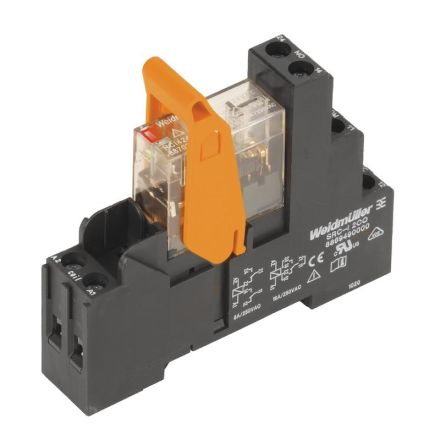

Relay coupler as assembled module consisting of plug-in relay and plug-in base. The control and load circuits are galvanically separated.

Property	Value
Number of contacts as changeover contacts:	2
Rated control supply voltage Us at AC 50 Hz:	207 to 276 V
Type of voltage for actuation:	AC
Design of the electrical connection:	screw connection
Drive, polarity:	unpolarized
Height:	77 mm
Width:	15.8 mm
Depth:	70.2 mm
Switching behavior of the drive:	monostable
Type of switching contact:	Single contact
With positively guided contacts:	no
With removable terminals:	no
Complete device with base:	yes
Protection class (IP):	IP20
With LED display:	yes

Characteristics

Complete device with baseYes

Drive, polarityUnpolarized

Type of switching contactSingle contact

Switching behavior of the driveMonostable

With positively guided contactsNo

HABRCIKIT 230VAC 2CO LD/V

Manufacturer

HAN2063180000

GTIN4050118414639

Number of contacts as changeover2

Design of the electrical connectionScrew connection

Rated control supply voltage Us at AC 50 Hz207 to 276 V

Width15.8 mm

Height77 mm

With LED displayYes

With removable clampsNo

IP protection)IP20

Voltage type for actuationAC

Depth70.2 mm

Weidmüller 2063180000 RCIKIT 230VAC 2CO LD/V relay coupler

Weidmüller 2063180000 RCIKIT 230VAC 2CO LD/V relay coupler

Price on request

€22.20

€0

Into a basketIn the basketGo
