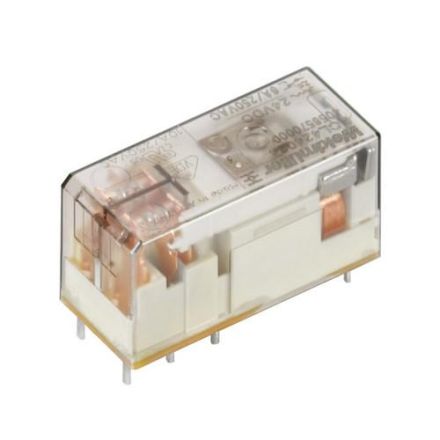

Weidmüller 4058630000 RCL 424730 230Vac-Rel2U replacement relay RCL

Weidmüller 4058630000 RCL 424730 230Vac-Rel2U replacement relay RCL

In stock

SKU: 777396

Price on request

€9.80

€0

Into a basketIn the basketGo

Overview

4058630000 RCL 424730 230Vac-Rel2U replacement relay RCL manufacturer article number: 4058630000, manufacturer article name: RCL 424730 230Vac-Rel2U

Property	Value
Number of contacts as changeover contact:	2
Rated control supply voltage Us at AC 50 Hz:	207 to 264.5 V
Rated control supply voltage Us at AC 60 Hz:	207 to 264.5 V
Voltage type for Actuation:	AC
Design of the electrical connection:	Plug connection
Drive, polarity:	unpolarized
Height:	29 mm
Width:	12.7 mm
Depth:	15.7 mm
Switching behavior of the drive:	monostable
Type of switching contact:	single contact
With positively guided contacts:	no
With removable terminals:	no
Complete device with base:	no
Protection class (IP):	IP20
With LED display:	no

Characteristics

Complete device with baseNo

Drive, polarityUnpolarized

Type of switching contactSingle contact

Switching behavior of the driveMonostable

With positively guided contactsNo

HABRCL 424730 230Vac-Rel2U

Manufacturer

HAN4058630000

GTIN4032248252510

Number of contacts as changeover2

Design of the electrical connectionPlug connection

Rated control supply voltage Us at AC 50 Hz207 to 264.5 V

Rated control supply voltage Us at AC 60 Hz207 to 264.5 V

Width12.7 mm

Height29 mm

With LED displayNo

With removable clampsNo

IP protection)IP20

Voltage type for actuationAC

Depth15.7 mm

Weidmüller 4058630000 RCL 424730 230Vac-Rel2U replacement relay RCL

Weidmüller 4058630000 RCL 424730 230Vac-Rel2U replacement relay RCL

Price on request

€9.80

€0

Into a basketIn the basketGo
