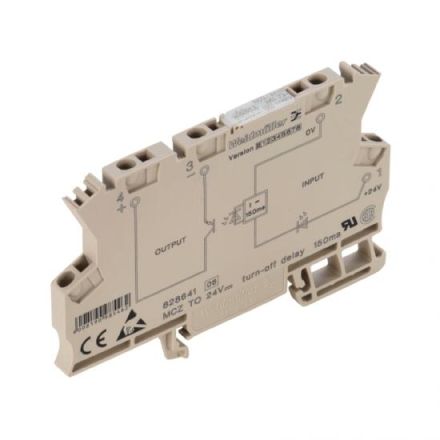

Weidmüller 8286410000 MCZ TO 24VDC/150MS time relay

In stock

SKU: 652082

Price on request

€70.79

€0

Overview

Time relay for processing signals in the control system. Short pulses are extended in time and are therefore reliably detected by the downstream control modules.

Property	Value
Number of outputs, delayed, normally open:	1
Design of the electrical connection:	Spring-loaded connection
Can be plugged onto contactor:	no
Outputs, switchable delayed/undelayed:	no
Type of voltage for actuation:	DC
Time range:	0.15 s
Rated control supply voltage Us at DC:	21.6 to 26.4 V
Width:	6.1 mm
Depth:	63.2 mm
Height:	91 mm
With plug-in base:	no
Remote control possible:	no
Suitable as remote control:	no
Function on-delayed:	no
Off-delayed function:	yes
On-delayed function:	no
Off-delayed function:	no
Star/delta function:	no
Pulse-forming function:	no
Flashing function starting with pause, fixed time:	no
Flashing function starting with pulse, fixed time:	no
Function clocking starting with pause, variable:	no
Function clocking starting with pulse, variable:	no
With semiconductor output:	yes
Suitable for DIN rail mounting:	yes
Suitable for front mounting:	no
