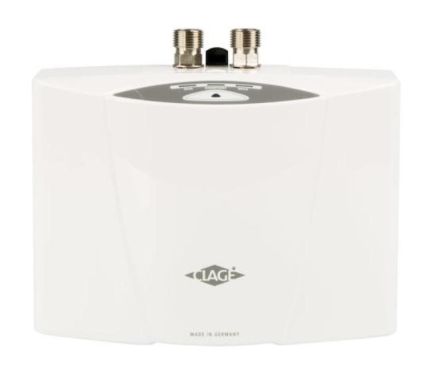

Clage 1500-15003 instantaneous water heater MCX3 Smartronic 3.5/230

In stock
SKU: 311775
€263.21
Into a basketIn the basketGo

Overview

Electric small instantaneous water heater, electronically controlled
MCX 3: 3.5kW 230V (approx. 2.0 l/min 35 to 45°C) with Schuko plug

Electronically controlled small instantaneous water heater with effective bare wire heating system for energy-efficient hot water supply to a point of use, especially a hand wash basin. The small, elegant device heats the water directly as it flows through, without using standby energy. The electronics automatically regulate the power so that the preset outlet temperature is not exceeded. Together with the economically adjusted flow rate, the device ensures maximum efficiency.

Description:

Electronically controlled instantaneous water heater (under-counter device) in mini format for supplying a hand wash basin or a tea kitchen
Saves up to 85% energy compared to conventional small storage tanks
Power electronics to regulate the heating output for demand-based hot water preparation
Effective bare wire heating system IES®
Pressure-resistant design
Removable cover for access to the central cover screw and water quantity adjustment
Ready to plug in (3.5 kW) or power cable (from 4.4 kW), length: 650 mm
Special jet regulator for use in jet regulator thread M 22/M24
Connection set (T-piece and flexible pressure hose) for an angle valve is included in delivery
The control panel with the sensor button and three colored LEDs is used to set the maximum outlet temperature to 35 °C, 38 °C or 45 °C

Areas of application:

With commercially available sanitary fittings for hand wash basins,
also suitable
for touchless fittings
for pillar taps (no mixing of hot and cold water necessary)
if scalding protection is required
with low flow water pressure
for reheating preheated water (e.g. solar)
for a kitchen sink (only MCX 6/7)

Technical information:

TypeMCX 3
Clage article number:15003
Nominal capacity liters:0.2
Permissible operating pressure MPa (bar) :1 (10)
Water connections (screw connections) :G 3/8
Hot water output at t = 25 K l/min: 2.0
Switch-on max. flow rate l/min: 1.2 2.0
Nominal output kW: 3.5
Voltage V: 1 / N / PE ~ 220 240
Nominal current A: 15
Required cable cross-section mm2: 1.5
Test mark/ protection class: yes/ IP 25
IES® bare wire heating system / cm: yes/ 1100
Suitable for solar systems (inlet temp. < 70 °C): yes
Approx. weight with water filling kg: 1.5
Dimensions (HxWxD): 13.5 18.6 8.7 cm

PropertyValue
Energy efficiency class:A
Rated power:3.5 kW
Rated voltage 1:230 V
Heating system:Bare wire
Height:135 mm
Width:186 mm
Depth:87 mm
Weight:1.5 kg
With display:no
Type of control:electronic
Protection class (IP):IP25
Mounting type:Under table

Characteristics

ManufacturerClage
HAN1500-15003
GTIN4010436150039
Width186 mm
Energy efficiency classA
Weight1.5 kg
Height135 mm
With displayNo
Mounting typeUnder counter
IP protection)IP25
Depth87 mm
