Catalog

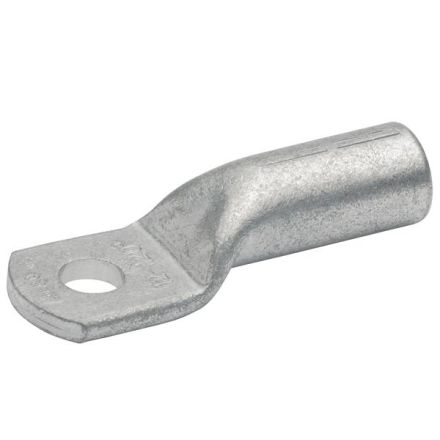

Klauke 101R5BK according to DIN 6qmm M5 compression cable lug

In stock
SKU: 557455
€0.38
Into a basketIn the basketGo

Overview

According to DIN 46235. With code number for clear tool assignment. For round conductors e.g. B0295 class 1, 2, 5 and 6. For rounded multi-wire sector conductors. With pressing markings for correct pressing. Optimum material and pressing properties due to annealed material. Precise end processing for easy cable insertion. Material Cu according to EN 13600, bright.

Property Value
Nominal cross section: 6 mm²
Connection thread size (metric): 5
Connection angle: 180° (horizontal)
Number of mounting holes: 1
Identification number: 5
Surface: bright
Identification colour: without

Characteristics

HABAccording to DIN 6qmm M5
Minimal order100 pcs
ManufacturerKlauke
HAN101R5BK
GTIN4012078012515
Connection thread size (metric)5
Connection angle180° (horizontal)
Number of mounting holes1
Identification colorWithout
Code number5
Nominal cross section6 mm²
SurfaceBlank
Klauke 101R5BK according to DIN 6qmm M5 compression cable lug
Klauke 101R5BK according to DIN 6qmm M5 compression cable lug
€0.38
Into a basketIn the basketGo
