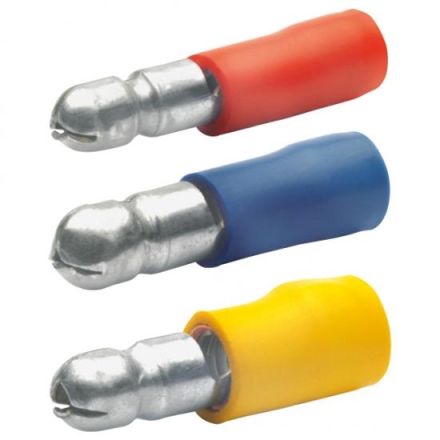

Klauke 1030 D: 5mm 1.5-2.5qmm tinned insulated round plug

Klauke 1030 D: 5mm 1.5-2.5qmm tinned insulated round plug

In stock

SKU: 555282

Price on request

€0.29

€0

Into a basketIn the basketGo

Overview

For fine and extra fine wire conductors. Color coding depending on cross-section. Temperature resistance up to 70° C. Galvanically tinned to protect against corrosion. Material CuZn (brass). Insulating sleeve: PVC.

Property	Value
Nominal cross section:	1.5 to 2.5 mm²
Plug dimensions:	around 5 mm
Insulation material:	Polyvinyl chloride (PVC)
Design:	Plug
Insulation color:	blue
Insulation:	partially insulated
Material:	Brass
With latching lug:	no
With tap:	no
Maximum current (Imax):	18.75 A

Characteristics

Color of the insulationBlue

Material of the insulationPolyvinyl chloride (PVC)

Maximum current (Imax)18.75 A

With tap-offNo

With locking lugNo

Plug dimensionsAround 5 mm

HABD: 5mm 1.5-2.5qmm tinned insulated

Minimal order100 pcs

Manufacturer

HAN1030

GTIN4012078000604

VersionPlug

IsolationPartially insulated

Nominal cross section1.5 to 2.5 mm²

MaterialBrass

Klauke 1030 D: 5mm 1.5-2.5qmm tinned insulated round plug

Klauke 1030 D: 5mm 1.5-2.5qmm tinned insulated round plug

Price on request

€0.29

€0

Into a basketIn the basketGo
