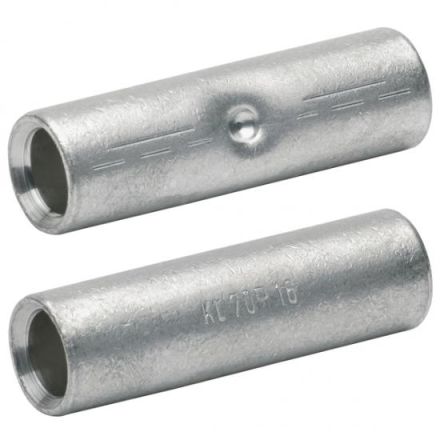

Klauke 121RBK according to DIN 6qmm press connector

In stock
SKU: 556736
€0.46
Into a basketIn the basketGo

Overview

According to DIN 46267, Part 1. With code number for clear tool assignment. With press markings for correct pressing. With center impression for exact cable insertion. Optimum material and pressing properties due to annealed material. Precise end machining for easy cable insertion. Material Cu according to EN 13600, bare.

Property Value
Nominal cross section: 6 mm²
Suitable for fine-stranded conductors: yes
Insulation: without
Design: DIN design
Suitable for high temperatures (up to 650 °C): no
Suitable for multi-stranded conductors: yes
Suitable for enamelled wire: no
Material: copper
Suitable for solid conductors: yes
Suitable for flat conductors: no
Number of branches: 2
Sleeve shape: long
Suitable for round conductors: yes
Surface: bare
AWG range: 10
For tensile connections: no
Oil stop/centre bar: no
Voltage range: up to 15 kV
Connection type: Butt connector

Characteristics

Oil stop/central barNo
Voltage seriesUp to 15 kV
Number of branches2
HABAccording to DIN 6qmm
Minimal order100 pcs
ManufacturerKlauke
HAN121RBK
GTIN4012078058582
AWG range10
VersionDIN version
For tensile connectionsNo
Suitable for flat conductorsNo
Suitable for enamelled wireNo
Suitable for round conductorsYes
Suitable for fine-stranded conductorsYes
Suitable for high temperatures (up to 650 °C)No
Suitable for solid laddersYes
Suitable for stranded conductorsYes
Sleeve shapeLong
IsolationWithout
Nominal cross section6 mm²
SurfaceBlank
Connection typeButt connectors
MaterialCopper
