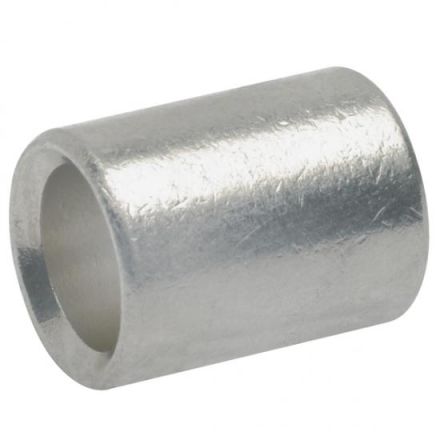

Klauke 1656K n. DIN 50qmm short version tinned crimp connector

In stock

SKU: 557736

Price on request

€1.04

€0

Overview

According to DIN 46341 Part 1, Form A. For conductors eg0295 Class 2, 5 and 6. Short version. Ideal for connecting different conductor cross-sections. Precise end processing for easy cable entry. Optimum material and pressing properties due to annealed material. Galvanically tinned to protect against corrosion. Material Cu in accordance with EN 13 600.

Property	Value
Nominal cross section:	50 mm²
Suitable for fine-stranded conductors:	yes
Insulation:	without
Design:	Normal design
Suitable for high temperatures (up to 650 °C):	no
Suitable for multi-stranded conductors:	yes
Suitable for enamelled wire:	no
Material:	copper
Suitable for solid conductors:	no
Suitable for flat conductors:	no
Number of branches:	2
Sleeve shape:	short
Suitable for round conductors:	yes
Surface:	tinned
For tensile connections:	no
Oil stop/central bar:	no
Voltage range:	up to 10 kV
Connection type:	Parallel connector
