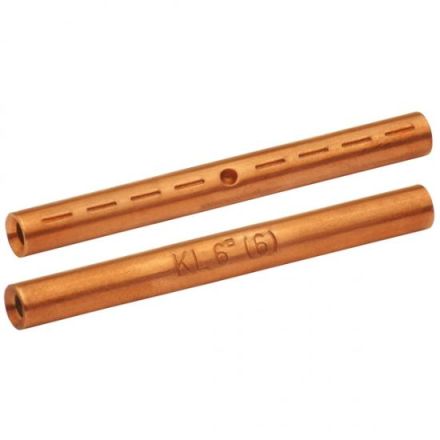

Klauke 181R according to DIN 6qmm press connector

In stock

SKU: 556727

Price on request

€2.12

€0

Overview

For high-tensile cable connections. Pipe dimensions according to DIN 48085 Part 1. With code number for clear tool assignment. With press markings for correct pressing. Precise end machining for easy cable insertion. Material Cu according to EN 13600, bare.

Property	Value
Nominal cross section:	6 mm²
Suitable for fine-stranded conductors:	yes
Insulation:	without
Design:	DIN design
Suitable for high temperatures (up to 650 °C):	no
Suitable for multi-stranded conductors:	yes
Suitable for enamelled wire:	no
Material:	other
Suitable for solid conductors:	yes
Suitable for flat conductors:	no
Number of branches:	2
Sleeve shape:	long
Suitable for round conductors:	yes
Surface:	bare
AWG range:	10
For tensile connections:	no
Oil stop/centre bar:	no
Voltage range:	up to 15 kV
Connection type:	Butt connector
