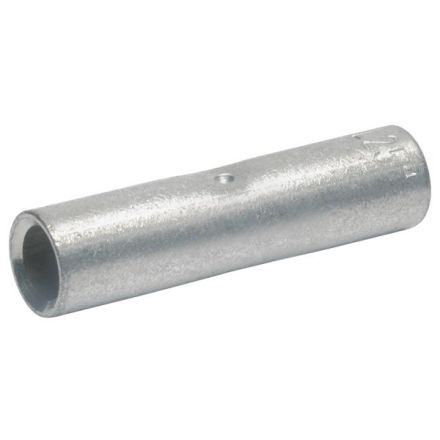

Klauke 28R standard version 95qmm tinned butt connector

In stock
SKU: 555426
€2.39
Into a basketIn the basketGo

Overview

For multi-stranded conductors e.g. 0295 class 2. For rounded multi-stranded sector conductors. Precise end processing for easy cable insertion. With center impression for exact cable insertion. Optimum material and pressing properties due to annealed material. Galvanically tinned to protect against corrosion. Material Cu according to EN 13600.

Property Value
Nominal cross section: 95 mm²
Suitable for fine-stranded conductors: no
Insulation: without
Design: Normal design
Suitable for high temperatures (up to 650 °C): no
Suitable for multi-stranded conductors: yes
Suitable for enamelled wire: no
Material: copper
Suitable for solid conductors: no
Suitable for flat conductors: no
Number of branches: 2
Sleeve shape: long
Suitable for round conductors: yes
Surface: tinned
For tensile connections: no
Oil stop/centre bar: no
Voltage series: up to 10 kV
Connection type: Butt connector

Characteristics

Oil stop/central barNo
Voltage seriesUp to 10 kV
Number of branches2
HABStandard version 95qmm tinned
ManufacturerKlauke
HAN28R
GTIN4012078074353
VersionStandard version
For tensile connectionsNo
Suitable for flat conductorsNo
Suitable for enamelled wireNo
Suitable for round conductorsYes
Suitable for fine-stranded conductorsNo
Suitable for high temperatures (up to 650 °C)No
Suitable for solid laddersNo
Suitable for stranded conductorsYes
Sleeve shapeLong
IsolationWithout
Nominal cross section95 mm²
SurfaceTinned
Connection typeButt connectors
MaterialCopper
