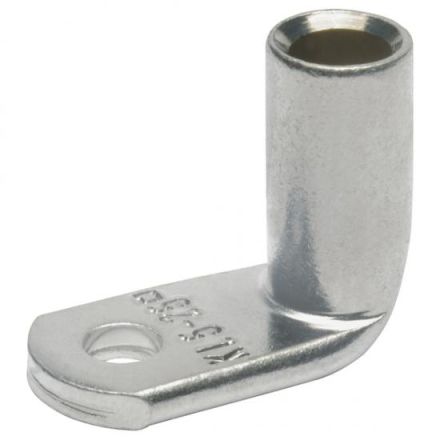

Klauke 43R8MS standard version 16qmm M8 90° angled with sight. Angled tubular cable lug

In stock
SKU: 558273
€1.13
Into a basketIn the basketGo

Overview

For multi-wire round conductors e.g. 0295 class 2. For rounded multi-wire sector conductors. Flat contact surface thanks to special angle stamping technology. Optimum material and pressing properties thanks to annealed material. Precise end processing for easy cable insertion. Galvanically tinned to protect against corrosion. Material Cu in accordance with EN 13600.

Property Value
Nominal cross section: 16 mm²
Connection thread size (metric): 8
With viewing hole: yes
Flange shape: Ring shape
Conductor class: Cl.2 = stranded
Insulated: no
Connection angle: 90°
Surface: tinned
Narrow flange version: no
Material: copper
Number of mounting holes: 1

Characteristics

HABNormal version 16qmm M8 90° angled with visibility.
Minimal order50 pcs
ManufacturerKlauke
HAN43R8MS
GTIN4012078500364
Connection thread size (metric)8
Connection angle90°
Number of mounting holes1
Flange shapeRing shape
IsolatedNo
Leader ClassKl.2 = stranded
With viewing holeYes
Nominal cross section16 mm²
SurfaceTinned
Narrow flange designNo
MaterialCopper
Klauke 43R8MS standard version 16qmm M8 90° angled with sight. Angled tubular cable lug
Klauke 43R8MS standard version 16qmm M8 90° angled with sight. Angled tubular cable lug
€1.13
Into a basketIn the basketGo
